12mm Precision Planetary Gearhead

Brushless Motor,Gear motor, DC Motor,DC Gear Motors,Brushless Gear Motors

PROUDUCTS

Products > Industrial Precision Motors >> High Precision Gearheads >> 12mm Precision Planetary Gearhead

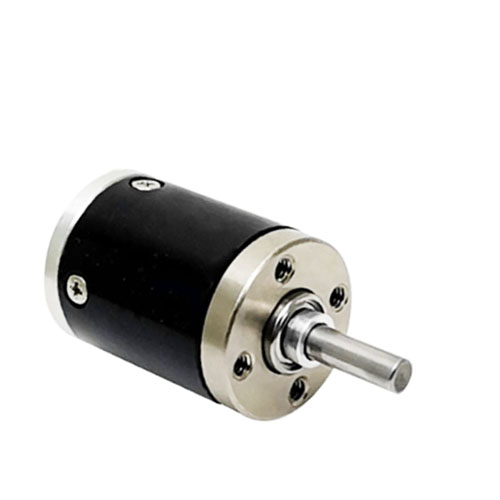

Large image

Model:MHG12

Unit:50

Steel Gear House

Steel Gears

Ball Bearing

Rated 1.8KG.cm @4.4:1

Rated 2.4KG.cm @24:1

Rated 3.0KG.cm @117.6:1

Rated 3.6KG.cm @576.5:1

Efficiency 90%~65%

Backlash 5~20arcmin @ no load

Feature

High Precision Planetary Gearhed

This is full steel gearhead, we can do customize the mounting face.

The first grade rated torque is 1.8Kgf.cm, and 90% efficiency, backlash 5 arcmin.

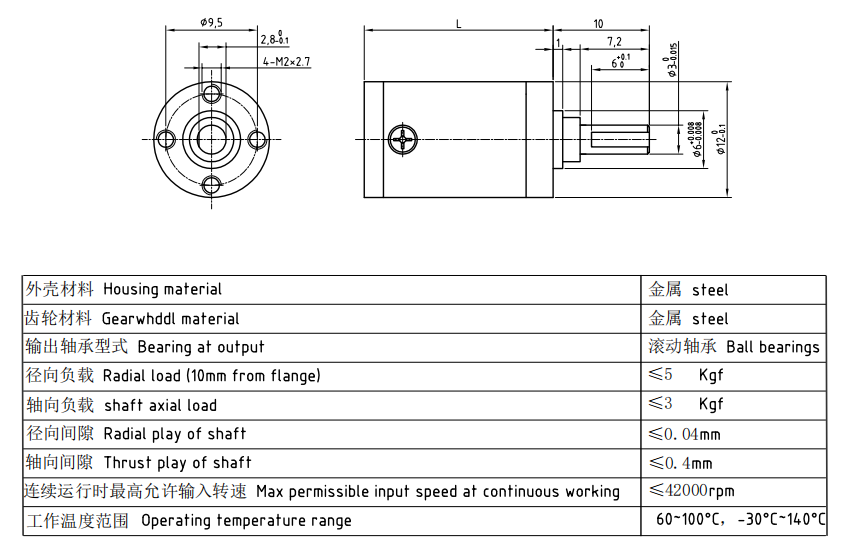

1.Appearance size

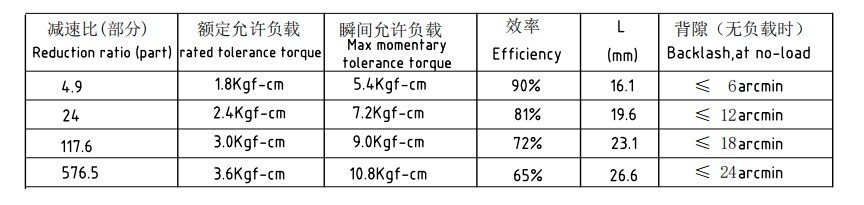

2.Gearboxes Specification
