Products > Industrial Precision Motors >> Premium Gearheads >> 12mm Steel Planetary Gearhead

Large image

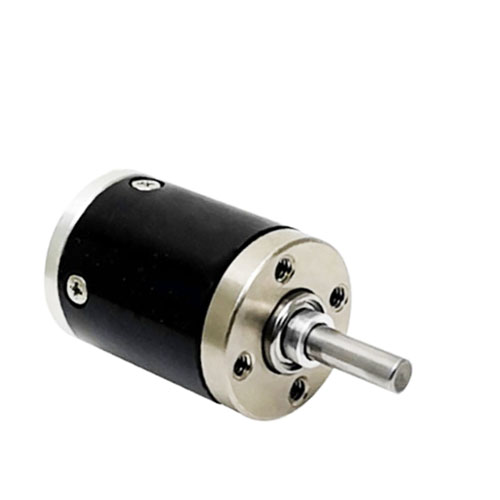

Model:MPG12

Unit:50

Steel Gear House

Steel Gear Gear

Ball Bearing

Rated torque 1.8KG.cm @3.6:1~4.9:1

Rated torque 2.4KG.cm @13:1~24:1

Rated torque 3.0KG.cm @46.7~117.6

Rated torque 3.6KG.cm @167~576.5

Efficiency 93%~70%

Feature

High Precision Planetary Gearhed

This is full steel gearhead, we can do customize the mounting face.

The first grade rated torque is 1.8Kgf.cm, and 93% efficiency..

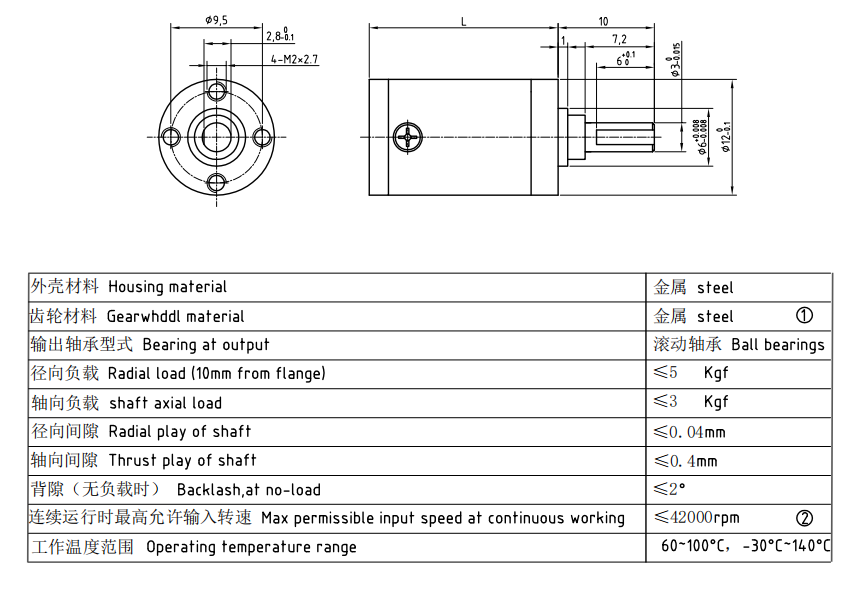

1.Appearance size

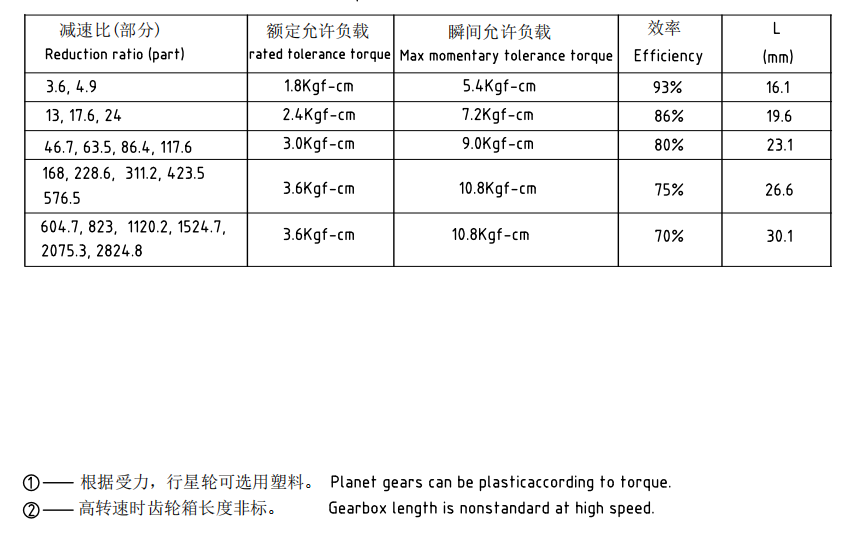

2. Gearboxes Specification
