Products > Industrial Precision Motors >> High Precision Gearheads >> 22mm Steel Planetary Gearhead

Large image

Model:MHG22

Unit:100

Steel Gear House

Steel Gears

Ball Bearing

Rated torque 7.2KG @3.75:1~6.5:1

Rated torque 9.6KG @14.1:1~42.3:1

Rated torque 12KG @52.7:1~274.6:1

Rated torque 14.5KG 197.8:1~1785:1~11602:1

Efficiency 90%~60%

Backlash 5~25arcmin @ no load

Feature

High Precision Planetary Gearhed

This is full steel gearhead, we can do customize the mounting face. Most time, we use it to mount coreless motors.

The first grade rated torque is 7.2Kgf.cm, and 90% efficiency, backlash 5arcmin.

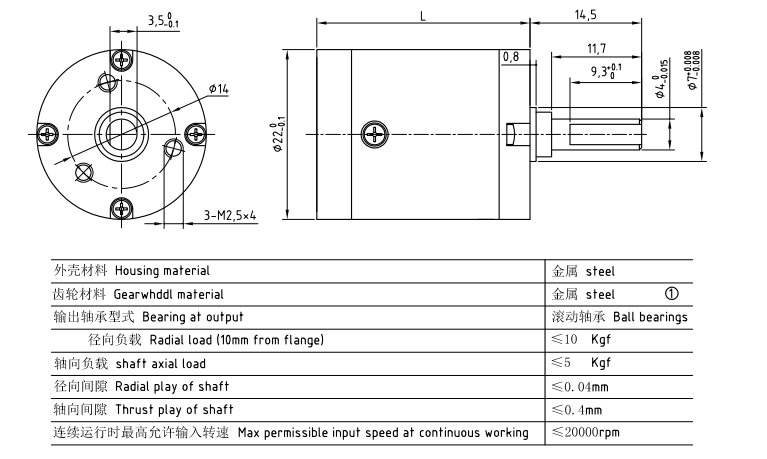

1.Appearance size

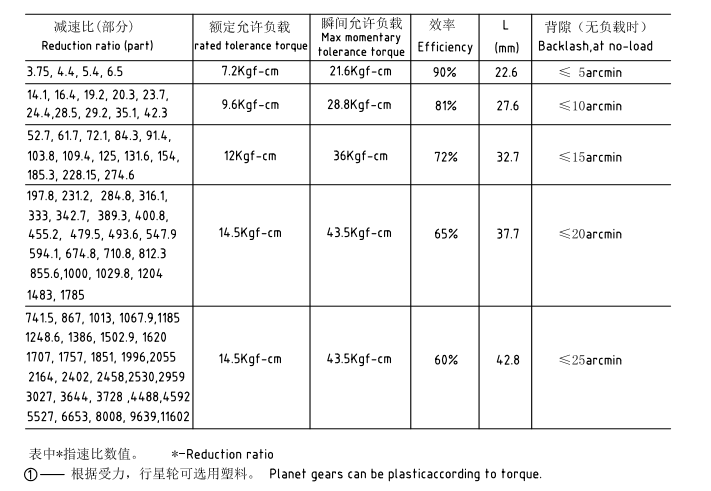

2. Gearboxes Specification
