Model:MHG28

Unit:100

Steel Gear House

Steel Gears

Ball Bearing

Rated torque 15.5KG.cm @4.4:1~8.3:1

Rated torque 21KG.cm @15.1:1~68.7:1

Rated torque 26KG.cm @77.1:1~368.2:1

Rated torque 31KG.cm @335.9:1~4713:1

Efficiency 90%~65%

Backlash 5~20arcmin @ no load

Feature

High Precision Planetary Gearhed

This is full steel gearhead, we can do customize the mounting face.

The first grade rated torque is 15.5Kgf.cm, and 90% efficiency, backlash 5arcmin.

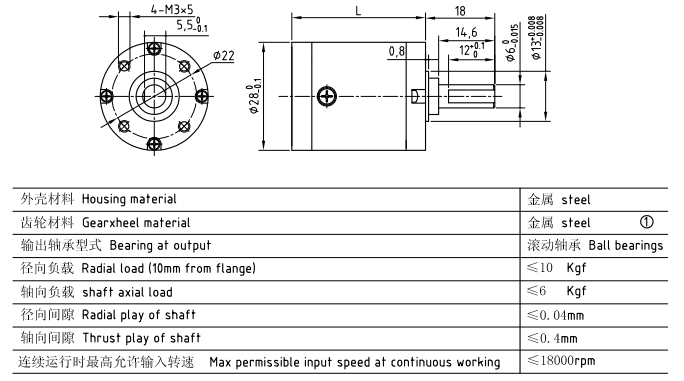

1.Appearance size

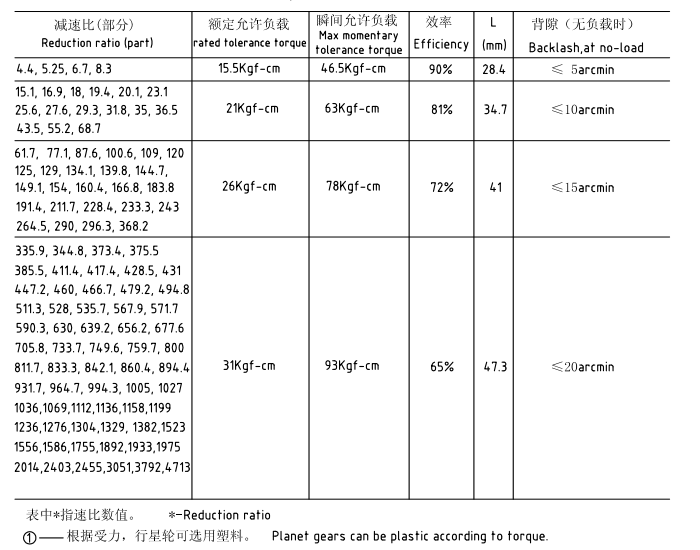

2.Gearboxes Specification
