45mm Steel Planetary Gearhead

Brushless Motor,Gear motor, DC Motor,DC Gear Motors,Brushless Gear Motors

PROUDUCTS

Products > Industrial Precision Motors >> High Precision Gearheads >> 45mm Steel Planetary Gearhead

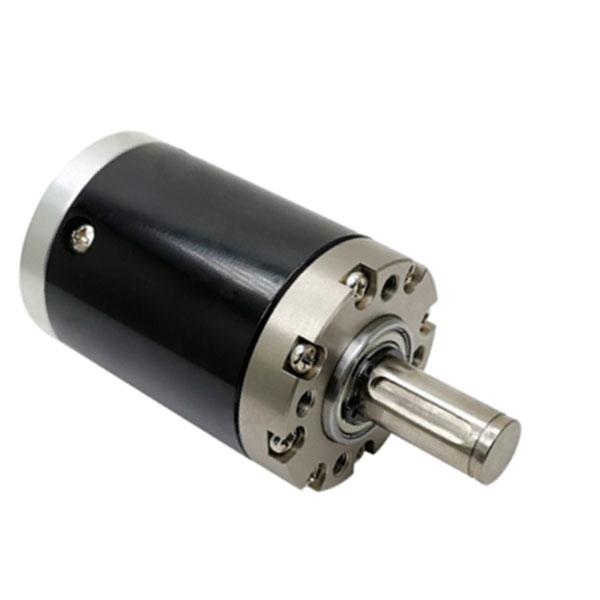

Large image

Model:MHG45

Unit:300

Steel Gear House

Steel Gears

Ball Bearing

Rated torque 65KG.cm @4.3:1~7.6:1

Rated torque 86KG.cm @14.7:1~58.1:1

Rated torque 108KG.cm@ 65.6:1~443.2:1

Rated torque 130KG.cm@ 277.4:1~3380:1

Efficiency 90%~65%

Backlash 5~20arcmin @ no load

Feature

High Precision Planetary Gearhed

This is full steel gearhead, we can do customize the mounting face.

The first grade rated torque is 65Kgf.cm, and 90% efficiency, backlash 5arcmin.

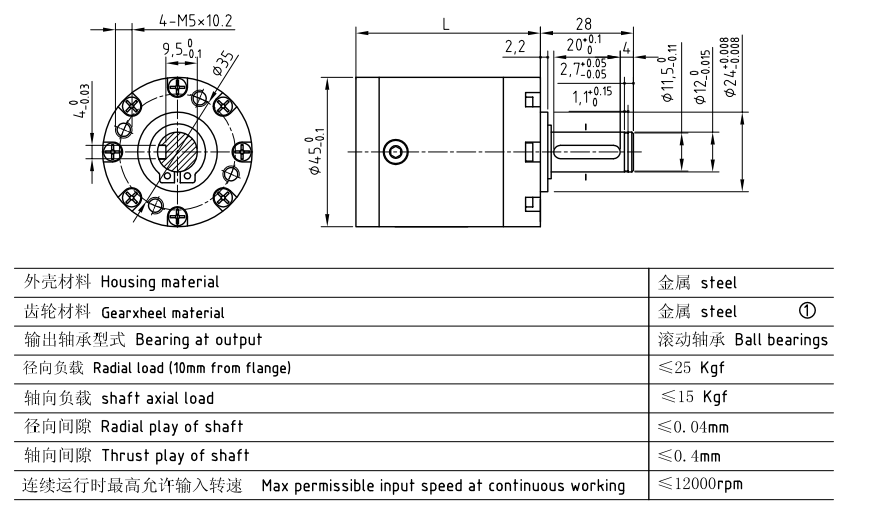

1.Appearance size

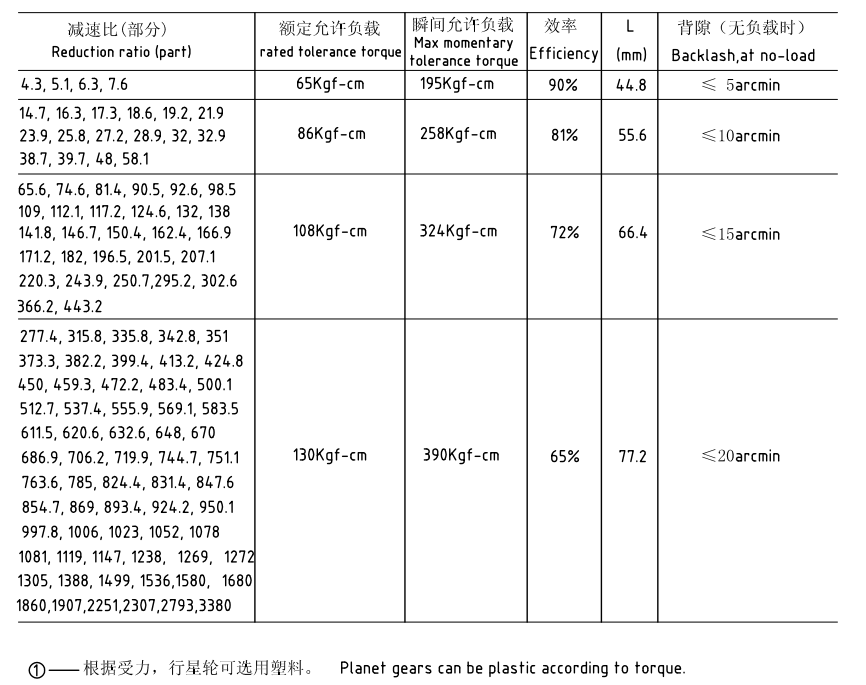

2.Gearboxes Specification
