 Products >  DC Gear Motors >>  12mm Gear Motors >> High Power Carbon Brush 12mm Gear Motor



Large image

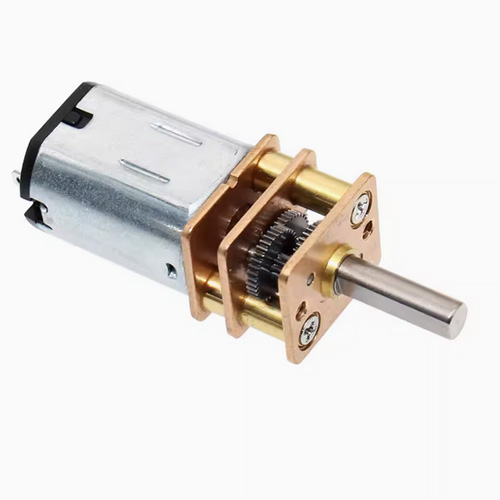

High Power Carbon Brush 12mm Gear Motor
Model:MG12K
Unit:1
  • Rated: DC6V
  • Operating: 3V-12V
  • Gear ratio:10-1000:1
  • No load speed:32-3200 rpm
  • Rated current: 900mA Max
  • Rated torque: 0.08-3.0Kg.cm
  • Stall Torque:0.2-3Kg.cm
  • 8
  • 9
    		•




    Feature

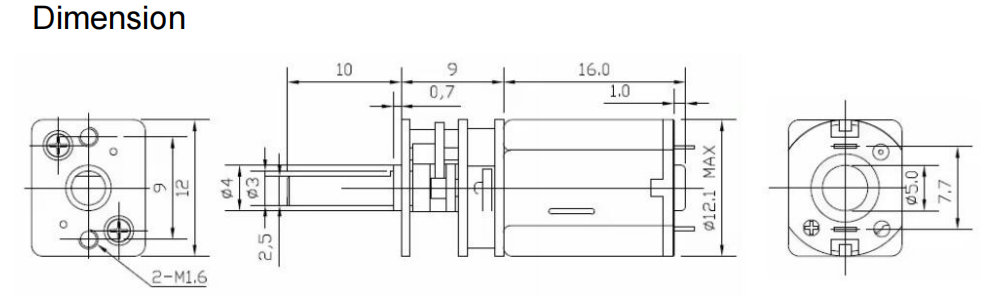

    Motor size: Ф12mm

    Typical Application:Medical instrument,  Intelligent robot, intelligent manipulator,  intelligent furniture, Intelligent focusing system,  miniature gimbal, etc

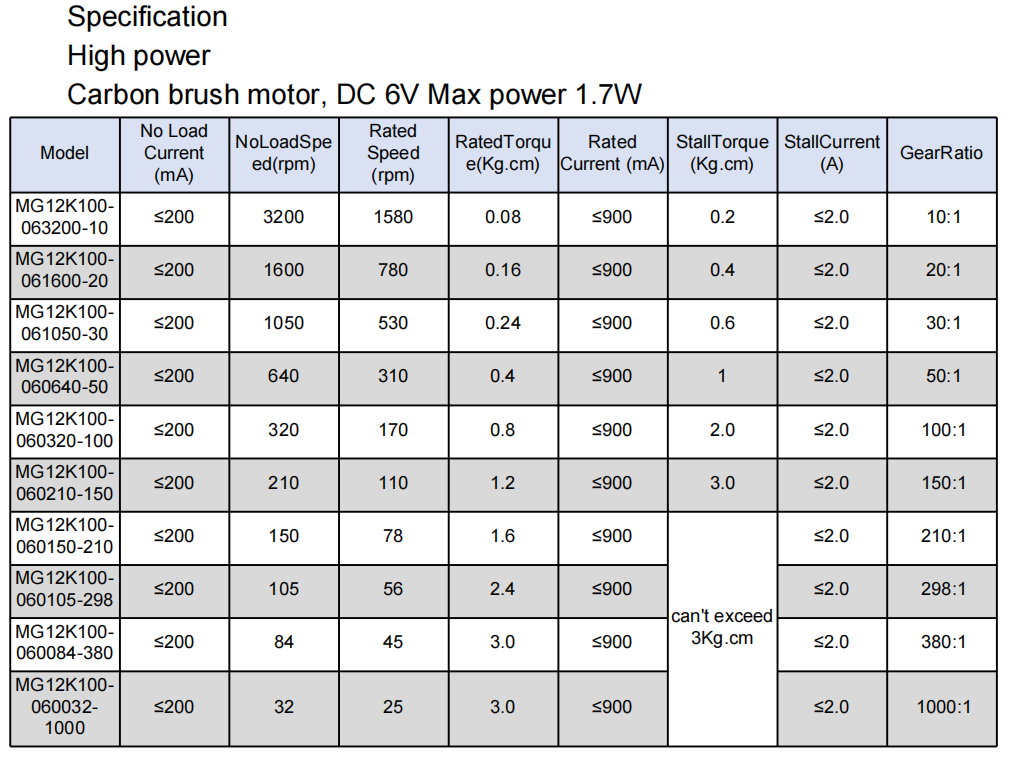

    Carbon brush motor, DC 6V Max power 1.7W
